BAR CHAMP

The Bar Champ is a manual bar PRECISION CHAMFERING MACHINE used to chamfer bars for many different applications. The rugged heavy duty proven design uses 2" thick steel plates to ensure chatter-free operation. From light de-bur chamfers to heavy cuts on hard materials, the Bar Champ just works!

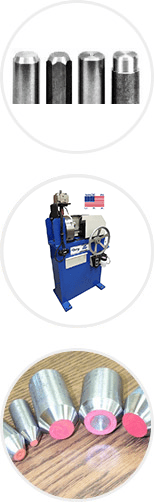

JF Berns Bar Champ Chamfering Machine

  • No hydraulics!
  • No change parts!
  • Holds concentricity when diameter vary!
  • Extremely fast changeovers!

Features

  • Chamfer, Turn, Face, Center Drill tooling available
  • No change parts
  • Self-centering chuck holds concentricty on diameter variations
  • Chamfer head rotates so bar remains stationary
  • Economical
  • Heavy duty, proven design
  • Round, hex, square bar stock
  • Up to 4.5" diameter bars
  • Uses standard 8-sided carbide inserts
  • Removable chip pan
  • Very low maintenance
  • Special tooling available
  • Designed & manufactured in USA

Standard Equipment

  • Standard chamfer head
  • 5069-30 Chamfer Tool - 30 degree
  • 3-Jaw chuck
  • 2HP, 3 phase motor
  • Single speed positive drive gear box (no belts) - variable speed optional
  • 350 RPM chamfer and turns bar diameters 0.25" to 4.5" diameter
  • 230/460VAC, 3 phase motor switch
  • Adjustable bar and travel stops for consistent, repeatable chamfers
  • Ball bearing ways
  • Removable chip pan
  • Bar support stand
MODEL HP RPM Bar Capacity  Bar
Height
Machine Weight
Lbs
Round Hex Square Width Length
76JB3 2 350 3" 2.625" 2" 41" 18" 40" 480
108JB3 2 350 4.25" 3.62" 3" 41" 18"
40"
530

Shapes

  • Round
  • Hex
  • Square


Materials

  • Steel
  • Stainless Steel
  • Titanium
  • Inconel


  • Aluminum
  • Brass
  • Bronze
  • Chrome

Barfeeder Application

In order to be able to run the largest bar stock diameter with a barfeeder that uses a collet style pusher, the bar must be turned down. The Bar Champ with the T5279-1.000 Turn and Chamfer tool is the answer.

Chamfering the front of the bar with a 30 degree chamfer will also help ensure that the bar loads properly.

Other Applications

Weld Prep - Put a consistent chamfer on parts to be welded to allow the weld to penetrate and lay flat on the part.

Debur - Instead of using a hand grinder to debur your bar, put a concentric consistent chamfer on them. A safer and better way to remove the burrs and sharp edges.

Machining - Machine a chamfer, turn and chamfer or face faster than loading the bar into a standard lathe. No need for expensive supports since the bar does not rotate.

Part Number Description
JB3-AOC-01 Air Operated Chucking.  Includes Actuators, valves and bracket.
JB3-VFD-01
Variable Speed, AC inverter, 58-700 RPM chamfer head speeds, for deep chamfers on difficult to machine materials
JB3-COD-01
Cutting Oil Drip System, for deep chamfers on difficult to machine materials.  Will also increase tool life.
CHF-SSA-001
Square Stock Adapter, for up to 2" square stock.  One required per each stock size.  Exact stock size must be specified.
CHF-BSS-01
Bar Support Stand.  2,000 Lb. capacity.  Note that one is incuded with the Bar Champ.
T5279-1.00
Turn and Chamfer Toolholder.  Includes two triangular carbide inserts, 1" turn depth.
5069
30-Degree Chamfer Tool.  Includes standard 3/4" carbide insert. Note that one is included with the Bar Champ.
5069-1
45-Degree Chamfer Tool.  Includes standard 3/4" carbide insert.

CLICK HERE  to see some examples of bars chamfered/turned/faced/center drilled with our products.

"The Chamfer Machine is working like a Champ! We are now looking for another machine for our Connecticut plant."

- Jim Doolittle Jr.
Accro Met Inc. / North Carolina
